Dobinsons Spring & Suspension

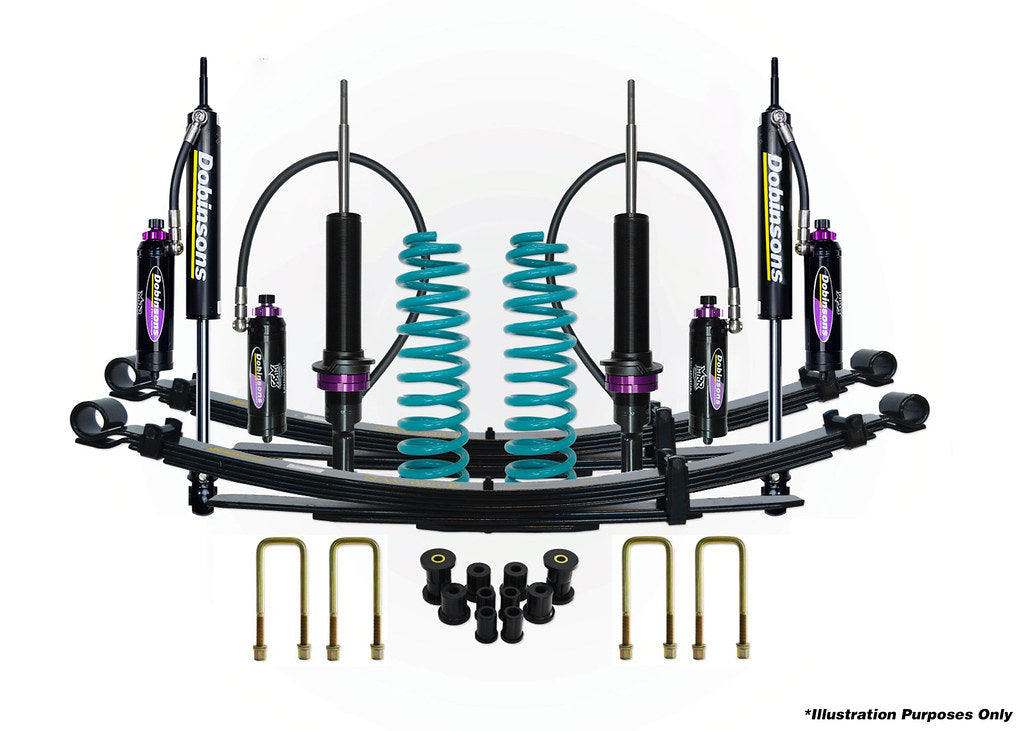

Dobinsons 2-3" MRR 3-Way Adjustable Suspension Kit for Nissan Frontier D41 2022 on - DSSKITIMSMRAD41 - DSSKITIMSMRAD41

Dobinsons 2-3" MRR 3-Way Adjustable Suspension Kit for Nissan Frontier D41 2022 on - DSSKITIMSMRAD41 - DSSKITIMSMRAD41

Regular price $3,400.00
Regular price Sale price $3,400.00
Sale Sold out

  • Front Coil Spring Specs:
    • C45-256 (65mm-2.5") Stock Load / (50mm-2") 110Lb Load
    • C45-254 (75mm-3.0") Stock Load / (65mm-2.5) 110Lb Load
    • C45-442 (75mm-3.0")  110-220Lb Load
  • 3-way Adjustable shocks provide maximum adjustability to provide the perfect ride quality for you.
  • 10 Stage High Speed Compression - For aggressive, high speed off roading through ruts and holes.
  • 20 Stage Low Speed Compression - For creepy crawling and cornering
  • 15 Stage Rebound - Control your coils, prevent bucking
  • 50mm CNC Machined High Flow Billet Aluminium Race Piston
  • 3mm Thick Heavy Duty DOM Seamless 56mm O.D. shock Body Precision Honed to +/- 0.04mm
  • Upgraded 3 Stage FKM-HNBR Sealing System
  • TSUGAMITM CNC machined components for precise tolerances
  • ParkerTM Braided High Pressure Hoses
  • 5140 HV900 Hard Chrome Plated, Heat treated 18mm Micro-Polished high strength Shock Shaft with a minimum tensile strength exceeding 700MPA
  • T6 6061 Height Adjustable Spring Seat
  • Carbon-Fibre/PTFE/Disulphide composite wear band for the ultimate in low-friction, low-wear performance
  • 60mm Full 6063 aluminum remote reservoir
  • Lightweight CNC Machined Low Friction floating piston
  • High Quality O.E.M. Grade Natural Rubber Bushings
  • Single Piece Lower Leg
  • EDP Surface Protection
  • Direct Bolt-On Design
  • CNC TIG Precision Welded Body End Mounts
  • Fully Rebuildable Design
  • U-Bolt plate will need to be drilled bigger to fit provided U-Bolts

Strut Assembly Video
