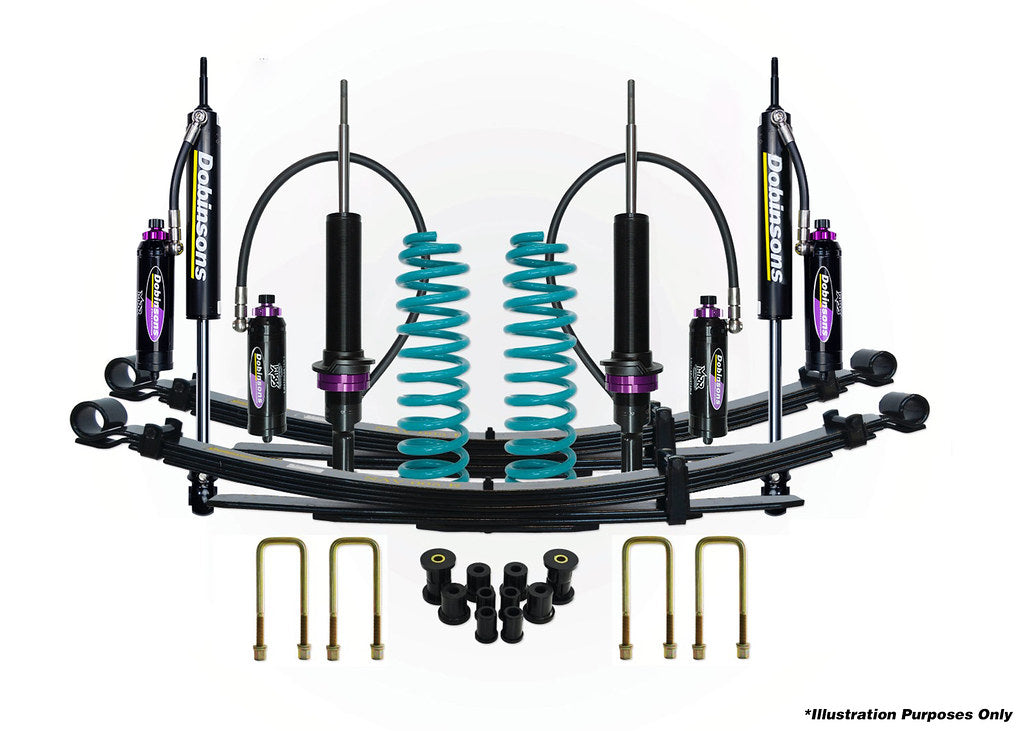

Dobinsons 1.5" to 3.0" MRR 3-way Adjustable Suspension Kit for 2005 to 2022 Tacoma 4x4 Double Cabs - DSSKITMRA05 - DSSKITMRA05
Dobinsons 1.5" to 3.0" MRR 3-way Adjustable Suspension Kit for 2005 to 2022 Tacoma 4x4 Double Cabs - DSSKITMRA05 - DSSKITMRA05
Regular price
$3,545.00
Regular price
Sale price
$3,545.00
Unit price
/
per
- Front Coil Spring Specs
- C59-302 - (40mm-1.6") Stock front end
- C59-314 - (50mm-2.0") Stock front end
- C59-352 - (50mm-2.0") Heavy load front end (110-240lbs) / (60mm-2.4") Stock front end
- C59-354 - (60mm-2.4") Heavy load front end (110-240lbs) / (70mm-2.75") Stock front end
- C59-318 - (75mm-3.0") Heavy load front end (110-240lbs)
- 3-way Adjustable shocks provide maximum adjustability to provide the perfect ride quality for you.
- 10 Stage High Speed Compression - For aggressive, high speed off roading through ruts and holes.
- 20 Stage Low Speed Compression - For creepy crawling and cornering
- 15 Stage Rebound - Control your coils, prevent bucking
- 50mm CNC Machined High Flow Billet Aluminium Race Piston
- 3mm Thick Heavy Duty DOM Seamless 56mm O.D. shock Body Precision Honed to +/- 0.04mm
- Upgraded 3 Stage FKM-HNBR Sealing System
- TSUGAMITM CNC machined components for precise tolerances
- ParkerTM Braided High Pressure Hoses
- 5140 HV900 Hard Chrome Plated, Heat treated 18mm Micro-Polished high strength Shock Shaft with a minimum tensile strength exceeding 700MPA
- T6 6061 Height Adjustable Spring Seat
- Carbon-Fibre/PTFE/Disulphide composite wear band for the ultimate in low-friction, low-wear performance
- 60mm Full 6063 aluminum remote reservoir
- Lightweight CNC Machined Low Friction floating piston
- High Quality O.E.M. Grade Natural Rubber Bushings
- Single Piece Lower Leg
- EDP Surface Protection
- Direct Bolt-On Design
- CNC TIG Precision Welded Body End Mounts
- Fully Rebuildable Design
- If pairing with a U-bolt Flip Kit plate, request UB59-453-1K in the order notes.
- MRA59-A941 shocks require 24" brake lines and 3" bump stop extensions or a bump stop that is at least 3" longer than OEM
Reservoir Installation Instructions
Front Strut Assembly Instructions
Strut Assembly Video
