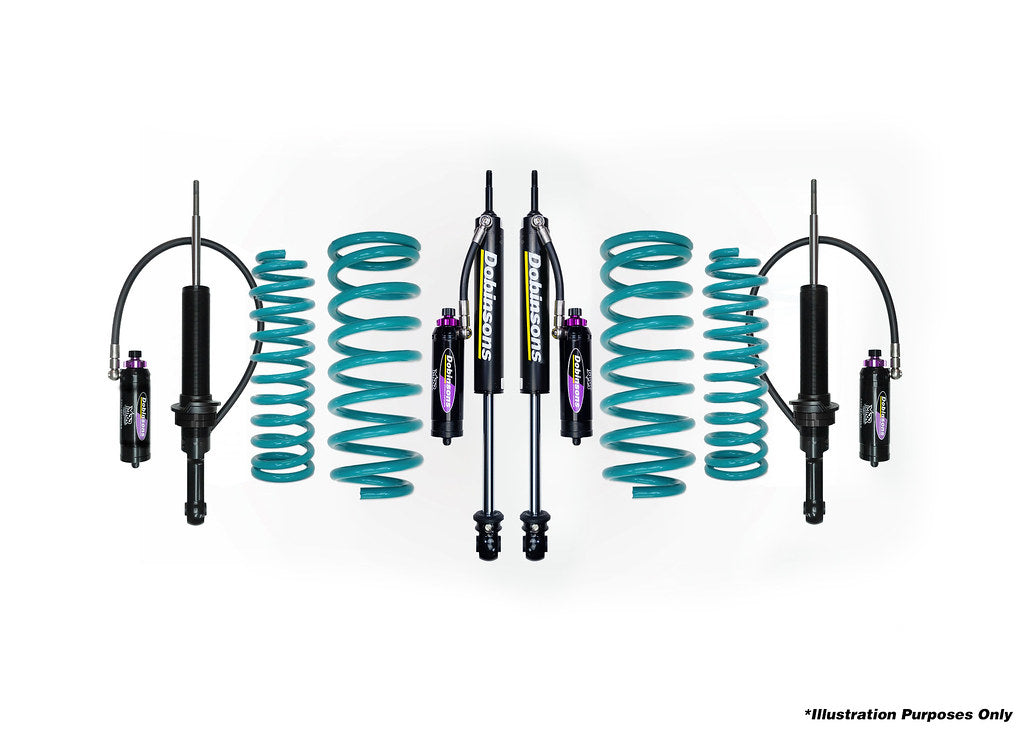

Dobinsons 2-3" MRR 3-way Adjustable Lift Kit for Toyota Tundra 2022 - 2024 - DSSKITMRA22T - DSSKITMRA22T

Dobinsons 2-3" MRR 3-way Adjustable Lift Kit for Toyota Tundra 2022 - 2024 - DSSKITMRA22T - DSSKITMRA22T

Regular price $3,370.00
Regular price Sale price $3,370.00
Sale Sold out


  • Front Coil Spring Specs
    • C59-834 (50mm - 2") 0-110lb Load
    • C59-836 (50mm - 2") 110-220lb Load
    • C59-838 (75mm - 3") 0-110lb Load
    • C59-840 (75mm - 3") 110-220lb Load
  • Rear Coil Spring Specs
    • C59-835V (25mm- 1") 0-110lb Load
    • C59-837V (25mm- 1") 220-440lb Load
    • C59-839V (25mm- 1") 550-770lb Load
    • C59-841V (50mm-2") 0-110Lb Load
    • C59-843V (50mm-2") 220-440lb Load
    • C59-845V (50mm-2") 550-770lb Load
  • 3-way Adjustable shocks provide maximum adjustability to provide the perfect ride quality for you.
  • 10 Stage High Speed Compression - For aggressive, high speed off roading through ruts and holes.
  • 20 Stage Low Speed Compression - For creepy crawling and cornering
  • 15 Stage Rebound - Control your coils, prevent bucking
  • 60mm CNC Machined High Flow Billet Aluminium Race Piston
  • 2.6" Precision Honed Shock Body
  • 3mm Thick Heavy Duty DOM Seamless 66mm O.D. shock Body Precision Honed to +/- 0.04mm
  • Upgraded 3 Stage FKM-HNBR Sealing System
  • TSUGAMITM CNC machined components for precise tolerances
  • ParkerTM Braided High Pressure Hoses
  • 5140 HV900 Hard Chrome Plated, Heat treated 18mm Micro-Polished high strength Shock Shaft with a minimum tensile strength exceeding 700MPA
  • T6 6061 Height Adjustable Spring Seat
  • Carbon-Fibre/PTFE/Disulphide composite wear band for the ultimate in low-friction, low-wear performance
  • 60mm Full 6063 aluminum remote reservoir
  • Lightweight CNC Machined Low Friction floating piston
  • High Quality O.E.M. Grade Natural Rubber Bushings
  • Single Piece Lower Leg
  • EDP Surface Protection
  • Direct Bolt-On Design
  • CNC TIG Precision Welded Body End Mounts
  • Fully Rebuildable Design
  • MRA59-A685 / MRA59-A885 Long Travel Shocks Require 1.5" bump stop extensions and extended brake lines
  • If doing a 2.5" lift or higher in the front, a diff-drop kit or longer TRD CV-axles are REQUIRED, faliure to complete these requirements could cause OE CV-axle faliure. 14mm bump stop extensions are also required
  • TRD axle shafts: PT362-3432B and PT362-3431B

****Coil seat for MRA59-A446 should be set at 175mm (6.87") from the strut bushing eye to top of coil isolator****

Front Reservoir Instructions

Rear Reservoir Instructions

Strut Assembly Video
