Dobinsons Spring & Suspension

Dobinsons 1.75"-2.0" Full MRR 3-Way Adjustable Suspension Kit for Toyota Landcruiser 77 Series - FZJ77, HZJ77, PZJ77 1993 to 1999 - DSSKITMRA91 - DSSKITMRA91

Dobinsons 1.75"-2.0" Full MRR 3-Way Adjustable Suspension Kit for Toyota Landcruiser 77 Series - FZJ77, HZJ77, PZJ77 1993 to 1999 - DSSKITMRA91 - DSSKITMRA91

Regular price $4,850.00
Regular price Sale price $4,850.00
Sale Sold out

  • 3-way Adjustable shocks provide maximum adjustability to provide the perfect ride quality for you.
  • 10 Stage High Speed Compression - For aggressive, high speed off roading through ruts and holes.
  • 20 Stage Low Speed Compression - For creepy crawling and cornering
  • 15 Stage Rebound - Control your coils, prevent bucking
  • 50mm/60mm CNC Machined High Flow Billet Aluminium Race Piston
  • 3mm Thick Heavy Duty DOM Seamless 56mm O.D. shock Body Precision Honed to +/- 0.04mm
  • Upgraded 3 Stage FKM€�HNBR Sealing System
  • TSUGAMITM CNC machined components for precise tolerances
  • ParkerTM Braided High Pressure Hoses
  • 5140 HV900 Hard Chrome Plated, Heat treated 18mm Micro-Polished high strength Shock Shaft with a minimum tensile strength exceeding 700MPA
  • T6 6061 Height Adjustable Spring Seat
  • Carbon-Fibre/PTFE/Disulphide composite wear band for the ultimate in low-friction, low€�wear performance
  • 60mm Full 6063 aluminum remote reservoir
  • Lightweight CNC Machined Low Friction floating piston
  • High Quality O.E.M. Grade Natural Rubber Bushings
  • Single Piece Lower Leg
  • EDP Surface Protection
  • Direct Bolt-On Design
  • CNC TIG Precision Welded Body End Mounts
  • Fully Rebuildable Design
  • 2.2" Front and 2.6" Rear Precision Honed Shock Bodies

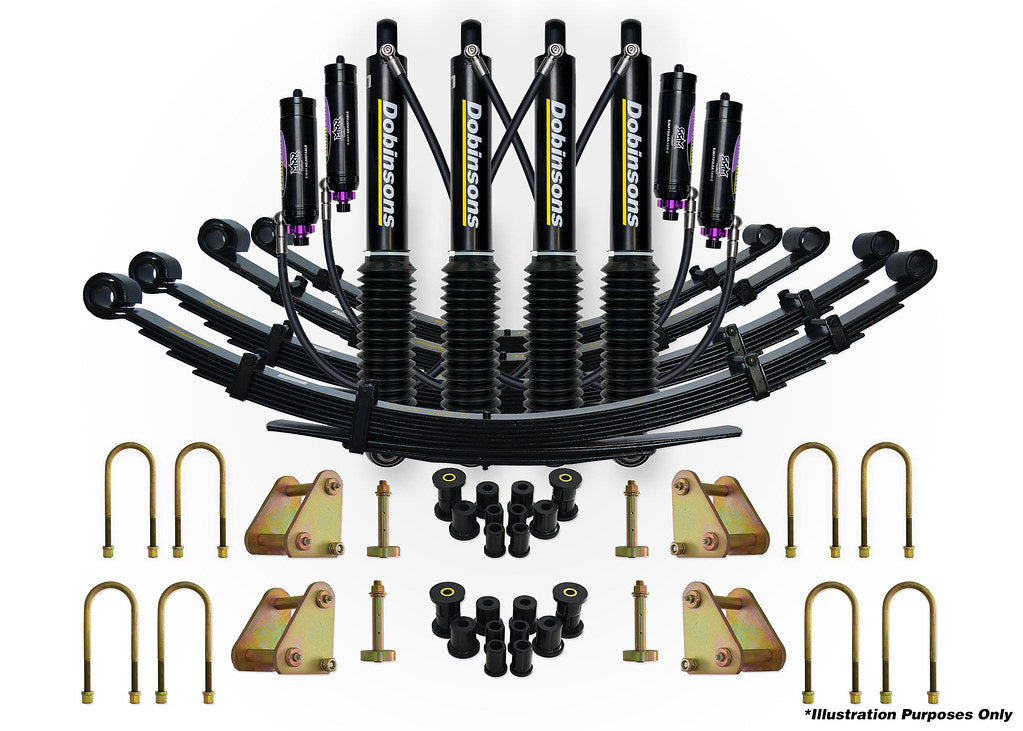

 This complete comes with everything you need, including:
  • Front and Rear Leaf Springs (choose load rating)
  • MRA59-A701 Front MRA Shocks
  • Rear Leaf Springs (choose load rating)
  • MRA45-A115 Rear MRA Shocks
  • PB59-1019K Front Leaf Spring Polyurethane Bushing Kit
  • UB59-668K Front U Bolt Kit
  • SP59-007 Front Greasable Pins
  • SK59-047/SK59-048 Front and Rear Greasable Anti-Reverse Shackle Kits (left and right sided)
  • PB59-1020K  Rear Leaf Spring Polyurethane Bushing Kit
  • UB59-453-1K Rear U Bolt Kit
  • SP59-023 Rear Greasable Pins
Dobinsons„¢ leaf springs are manufactured from only the highest quality raw materials. We understand the importance of selecting not only the highest quality spring steel, but also the correct grade that will give the longest life under the harshest conditions.  Our design engineers ensure that all our leaf springs are designed specifically for each vehicle model, with consideration given to the load and height requirements for each application.  For more information on Dobinsons Leaf Springs, visit: https://www.dobinsonsprings.com/suspension/springs/leaf-springs Designed, developed and tested in Australia by Dobinsons Spring & Suspension, in-house suspension design engineers, Dobinsons 4×4 shock absorbers and coil springs are designed and tested to perform in the harshest conditions right across the world. As Dobinsons export to over 40 countries worldwide from their Australian head office, the importance of quality is at the forefront in the complete design and manufacturing process. This ensures every shock and coil spring can withstand the blistering heat and corrugations of the Australian outback right through to the subzero temperatures of a Russian winter. Dobinsons IMS shock absorbers are made from the world€™s highest quality external and internal parts sourced worldwide. They provide a significant increase in performance over the standard shock absorbers. Dobinsons IMS shock absorbers feature larger bodies, larger bores and increased valving performance to dramatically improve vehicle handling and control and reduces shock fade. **Note: Due to the overall size and weight of this suspension, the suspension is packed and shipped on a pallet, and the shipping is to the nearest freight terminal ONLY for you to pick up at your leisure, or to a commercial address with a forklift or loading dock.  An additional charge will have to be calculated if a residential delivery is required.
